XPR300 plasma cutting system

The XPR300 represents the most significant advance in mechanized plasma cutting technology, ever. This next generation system redefines what plasma can do by expanding its capabilities and opportunities in ways never before possible. With unmatched X-Definition® cut quality on mild steel, stainless steel and aluminum, the XPR300 increases cut speed, dramatically improves productivity and slashes operating costs. New ease-of-use features and engineered system optimization make the XPR300 easier to run with minimal operator intervention, while also ensuring optimal performance and unmatched reliability.



System information

Benefits

Industry-leading X-Definition cut quality

The XPR advances HyDefinition® cut quality by blending new technology with refined processes for next generation, X-Definition™ cutting on mild steel, stainless steel and aluminum.

  • Consistent ISO range 2 results on thin mild steel
  • Extended ISO range 3 cut quality results compared with earlier plasma technology
  • Superior stainless steel cut quality across all thickness ranges
  • Superior results on aluminum using Vented Water Injection™ (VWI)

Learn more about X-Definition technologies


Optimized productivity and reduced operating costs

  • Significantly reduced operating costs than previous generation technology
  • Increased cut speeds on thicker materials
  • Dramatic improvement in consumable life on mild steel applications
  • Thicker piercing capability than competitive plasma systems

Engineered system optimization

XPR is engineered to deliver the highest quality cuts and optimal system performance automatically.  Advanced power supply technology delivers highly responsive, rapid system feedback, and automatically intervenes to eliminate events that negatively impact system efficiency and consumable life.

XPR’s Arc response technologyTM provides automatic torch and ramp-down error protection. Sensors in the power supply deliver refined diagnostic codes and significantly enhanced system monitoring information that reduces troubleshooting time and provides proactive system maintenance data for improved system optimization.

  • Increases consumable life 3 times that of competitor’s systems by eliminating the impact of ramp down errors
  • Reduces the impact of catastrophic electrode blowouts which can damage the torch at high current levels

Ease of use

  • Intuitive operation and automatic monitoring redefine ease of use
  • Full control of all functions and settings via the CNC
  • Automatic system monitoring and specific troubleshooting codes for improved maintenance and service prompts
  • EasyConnect™ torch lead and one hand torch-to-receptacle connection for fast and easy change-outs
  • QuickLock™ electrode for easy consumable replacement
  • WiFi in power supply can connect to mobile devices and LAN for multiple system monitoring and service

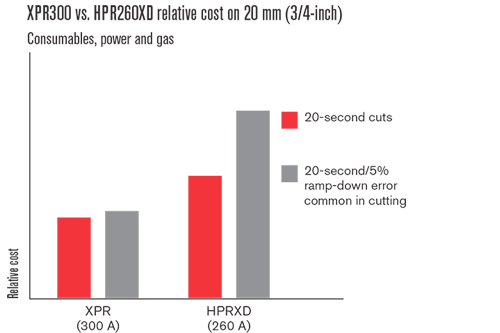

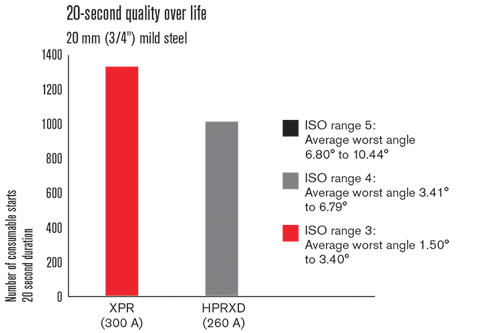

Chart XPR300 20 second starts

Advanced process control and delivery

Three console options – Core™, Vented Water Injection™ (VWI) and OptiMix™ – offer unmatched mild steel cut quality with each console delivering successively enhanced cutting capabilities on stainless steel and aluminum. All consoles can be fully controlled through the CNC for high productivity and ease of use.

Gas-connect console gases/fluids

 CoreVented Water Injection (VWI)OptiMix
O2/N2/Air X X X
F5/Ar/H2O   X X
H2-N2-Ar mixing     X
XPR OptiMix console

Better for the environment, too!

The XPR300 system reduces consumable use, energy and the carbon footprint.

  • 64% less consumable copper material is used per foot of cut
  • System is 99.5% recyclable and packaging is 100% recyclable
  • The carbon impact of magnetics is 77% lower than its predecessor
  • 62% higher power-to-weight ratio and 14% faster cuts

Learn more about improvements that have been made

Hypertherm | Greener Cuts logo

Specifications

Maximum open-circuit voltage (U0) 360 VDC
Maximum output current 300 A
Maximum output power 66.5 kW
Output voltage 50 VDC–210 VDC
100% duty arc voltage 210 V
Duty cycle rating 100% at 66.5 kW, 40° C (104° F)
Operational ambient temperature range -10° C–40° C (14° F–104° F)
Power factor 0.98 at 66.5 kW
Cooling Forced air (Class F)
Insulation Class H
EMC emissions classification (CE models only) Class A
Lift points Top lift eye weight rating 680 kg (1,500 lb.)


Operating data

Cut chart thickness mm inches
Pierce capacity Mild steel (argon-assist) 50 2
Mild steel (standard O2) 45 1–3/4
Stainless steel 38 1–1/2
Aluminum 38 1–1/2
Severance capacity Mild steel 80 3–1/8
Stainless steel 75 3
Aluminum 50 2



This does not represent a complete list of processes or thicknesses that are available.

Console Cutting gases Current (A) Cut chart thickness (mm) Approximate cutting speed (mm/min) Cut chart thickness (in.) Approximate cutting speed (ipm)
Mild steel
CoreTM, VWI, and OptiMixTM O2 plasma 30 0.5 5348 0.018" 215
O2 shield 3 1153 0.135" 40
5 726 3/16" 30
O2 plasma 50 3 3820 0.105" 155
Air shield 5 2322 3/16" 95
8 1369 5/16" 55
O2 plasma 80 3 5582 0.105" 225
Air shield 6 3048 1/4" 110
12 1405 1/2" 55
O2 plasma 130 3 6502 0.135" 240
Air shield 10 2680 3/8" 110
38 256 1-1/2" 10
O2 plasma 170 6 5080 1/4" 200
Air shield 12 3061 1/2" 115
25 1175 1" 45
50 267 2" 10
O2 plasma 300 12 3940 1/2" 155
Air shield 25 1950 1" 75
50 560 2" 21
80 165 3" 7
Stainless steel
Core, VWI, and OptiMix N2 plasma 40 0.8 6100 0.036" 240
N2 shield 3 2683 0.105" 120
6 918 1/4" 32
VWI and OptiMix F5 plasma 80 3 4248 0.135 140
N2 shield 6 1916 1/4" 70
12 864 1/2" 34
OptiMix H2-Ar-N2 plasma 170 10 1975 3/8" 80
N2 shield 12 1735 1/2" 65
38 256 1-1/2" 10
H2-Ar-N2 plasma 300 12 2038 1/2" 80
N2 shield 25 1040 1" 40
50 387 2" 17
75 162 3" 6
VWI and OptiMix N2 plasma 300 12 2159 1/2" 85
H2O shield 25 1302 1" 50
50 403 2" 15
Aluminum
Core, VWI, and OptiMix Air plasma 40 1.5 4799 0.036 240
Air shield 3 2596 1/8" 85
6 911 1/4" 32
VWI and OptiMix N2 plasma 80 3 3820 1/8" 140
H2O shield 6 2203 1/4" 80
10 956 1/2" 28
N2 plasma 130 6 2413 1/4" 95
H2O shield 10 1702 3/8" 70
N2 300 20 870 3/4" 35
12 2286 1/2" 90
H2O shield 25 1302 1" 50
50 524 2" 20
OptiMix H2-Ar-N2 plasma 300 12 3810 1/2" 150
N2 shield 25 2056 1" 80
50 391 2" 15



Buying information

Visit our where to buy page to find a potential partner, or contact Hypertherm directly if you need further assistance.

Resources

Manuals and documents
Training


Torches and consumables



XPR torch

 XPR torch

XPR consumables

Nozzles and electrodes are available in various quantities. Please contact an authorized Hypertherm distributor to place your consumables order. Your consumables may not look exactly like the pictures.

Mild steel

XPR mild steel consumable stack up

Amperage Process Shield cap Shield Nozzle retaining cap Nozzle Swirl ring Electrode Water tube
30 A O2/O2 420200 420228 420365 420225 420407 420222 420368
50 A O2/Air 420200 420237 420365 420234 420233 420231 420368
80 A O2/Air 420200 420246 420365 420243 420242 420240 420368
130 A O2/Air 420200 420255 420365 420252 420242 420249 420368
170 A O2/Air 420200 420513 420365 420261 420260 420258 420368
220 A O2/Air 420200 420273 420365 420270 420406 420276 420368
300 A O2/Air 420200 420491 420365 420279 420406 420276 420368

Non-ferrous

XPR non-ferrous consumable stackup

Amperage Process Shield cap Shield Nozzle retaining cap Nozzle Swirl ring Electrode Water tube
40 A N2/N2 420200 420291 420365 420288 420314 420303 420368
Air/Air 420200 420291 420365 420288 420314 420294 420368
60 A N2/N2 420200 420309 420365 420297 420323 420303 420368
F5/N2 420200 420309 420365 420297 420323 420303 420368
N2/H2O 420200 420300 420365 420296 420323 420303 420368
Air/Air 420200 420309 420365 420297 420323 420294 420368
80 A N2/N2 420200 420309 420365 420306 420323 420303 420368
F5/N2 420200 420309 420365 420306 420323 420303 420368
N2/H2O 420200 420300 420365 420290 420323 420303 420368
Air/Air 420200 420309 420365 420306 420323 420294 420368
130 A N2/N2 420200

420318

420365

420315

420314 420356 420368
H2-Ar-N2/N2 420200 420318 420365 420315 420323 420356 420368
N2/H2O 420200 420469 420365 420315 420314 420356 420368
170 A N2/N2 420200 420327 420365 420324 420314

420356

420368
H2-Ar-N2/N2 420200 420327 420365 420324 420323 420356 420368
N2/H2O 420200 420472 420365 420324 420314 420356 420368
Air/Air 420200 420513 420365 420524 420260 420258 420368
300 A N2/N2 420200 420362 420365 420359 420323 420356 420368
H2-Ar-N2/N2 420200 420362 420365 420359 420358 420356 420368
N2/H2O 420200 420475 420365 420359 420323 420356 420368

XPR300 starter kits

Part number Description
428618 XPR300 Mild steel consumables starter kit (torch included)
428619 XPR300 Stainless steel consumables starter kit (torch included)
428616 XPR300 Mild steel consumables starter kit
428945 XPR300 Core console non-ferrous consumables starter kit
428617 XPR300 Stainless steel consumables starter kit
