HyPerformance HPR130XD
The HyPerformance® HPR130XD, 130 amp plasma power supply was last manufactured in October, 2019 and is no longer available for sale from Hypertherm. We continue to make original replacement torches, consumables and repair parts.
Hypertherm Technical Service department continues to support this model and technical documentation for self-service is available in our Documents Library.
System information
Specifications
| Mild steel cut capacity | Dross free Production pierce Maximum cutting capacity |
16 mm (5/8") 32 mm (1-1/4") 38 mm (1-1/2") |
| Stainless steel cut capacity | Production pierce Maximum cutting capacity |
20 mm (3/4") 25 mm(1") |
| Aluminum cut capacity | Production pierce Maximum cutting capacity |
20 mm (3/4") 25 mm (1") |

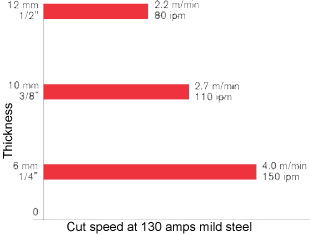

| Speed (Mild steel) |
Book specification at highest output current | 12 mm (1/2") 2200 mm/m (80 ipm) |

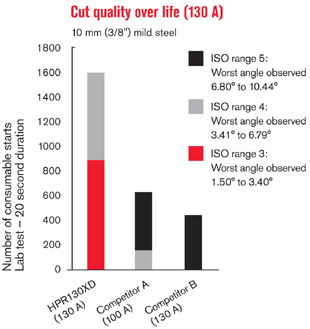

| Cut angle | ISO 9013 range* | 2-4 |
| Weldability | Ready to weld | |
| Process gases by material (Plasma/shield) |
Mild steel Stainless steel Aluminum |
02/Air, 02/02, Ar/Air H35/N2, N2/N2, H35-N2/N2, F5/N2, Ar/Air, Ar/N2 H35/N2, Air/Air, H35-N2/N2, Ar/Air, Ar/N2 |
| Process amps | Not all processes available for all materials |
30-130 |
* ISO 9013 is a standard that defines cut quality of thermally cut parts. The lower the range (range 1 is the lowest), the smaller the angle on the cut face. Cut angle in range 4 is better than in range 5.
Resources
Manuals and documents
HPR cartridge - simplify your cutting process
PDF (1.22MB)
Maintenance
Learn how the HPR cartridge makes it simple
Delivering longer life and extended cut quality, the single-piece HPR cartridge for HPRXD systems replaces five traditional consumables with just one – for simplified ordering, faster change-outs, and fewer errors.
HPR cartridge
HPR cartridge consumablesNew!
| Mild steel process | Retaining cap | Cartridge | Water tube | Torch body |
|---|---|---|---|---|
| 80 A (standard cutting)* | 420708 | 420803 | 420728 | 420729 |
| 130 A (standard cutting)* | 420708 | 420705 | 420728 | 420729 |
* HPR cartridge require a new torch body, water tube, and retaining cap. The HPR cartridge torch body connects directly to a standard HPRXD receptacle (part number 220705).
HPR cartridge kitsNew!
| Type | Kit p/n | Includes p/n | Description | Quantity |
| Torch starter kit | 528101 | 420729 | Torch body | 1 |
| 420728 | Water tube | 1 | ||
| 420708 | Retaining cap | 1 | ||
| 528107 | Kit: O-ring cartridge torch | 1 | ||
| Cartridge 3-pk kits |
528102 | 420803 | Kit: Cartridge, 80 A | 3 |
| 528103 |
420705 |
Kit: Cartridge, 130 A | 3 | |
| 528105** | 420803, 420705, 420715 | Kit: Cartridge, multi-amps | 3 |
** Note: 528105 cartridge multi-amps kit contains (1) of each amperage (80 A, 130 A, and 260 A).
HPR130XD standard consumables
Mild steel
130 amp consumables - mild steel
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | SilverPlus electrode | Water tube |
|---|---|---|---|---|---|---|---|---|
| 30 A | 220747 | 220194 | 220754 | 220193 | 220180 | 220192 | ______ | 220340 |
| 50 A | 220747 | 220555 | 220754 | 220554 | 220553 | 220552 | ______ | 220340 |
| 80 A | 220747 | 220189 | 220756 | 220188 | 220179 | 220187 | 420566 | 220340 |
| 130 A | 220747 | 220183 | 220756 | 220182 | 220179 | 220181 | 220665 | 220340 |
| 80 A bevel | 220637 | 220742 | 220845 | 220806 | 220179 | 220802 | ______ | 220700 |
| 130 A bevel | 220637 | 220742 | 220740 | 220646 | 220179 | 220649 | ______ | 220700 |
Stainless steel
130 amp consumables - stainless steel
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | SilverPlus | Water tube |
|---|---|---|---|---|---|---|---|---|
| 45 A | 220747 | 220202 | 220755 | 220201 | 220180 | 220308 | 220340 | |
| 60 A HDi | 220747 | 220815 | 220814 | 220847 | 220180 | 220339 | 220340 | |
| 80 A | 220747 | 220338 | 220755 | 220337 | 220179 | 220339 | 220340 | |
| 130 A | 220747 | 220198 | 220755 (H35) 220756 (N2) |
220197 | 220179 | 220307 | 220340 | |
| 130 A bevel | 220637 | 220738 | 220739 | 220656 | 220179 | 220606 | 220571 |
Aluminum
130 amp consumables - aluminum
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | SilverPlus | Water tube |
|---|---|---|---|---|---|---|---|---|
| 45 A | 220747 | 220202 | 220756 | 220201 | 220180 | 220308 | 220340 | |
| 130 A | 220747 | 220198 | 220755 (H35) 220756 (Air) |
220197 | 220179 | 220307 (H35) 220181 (Air) |
220340 |
HPR130XD standard consumable starter kits
Designed especially for your HPR130XD system, the Hypertherm consumable kit contains all the necessary consumables and accessories you need to get up-and-cutting. Customers can choose either mild or stainless steel/aluminum consumable starter kits.
| Kit type (MS) | HPR130XD mild steel starter kit (130 A and below) |
|---|---|
| Kit part number | 228420 |
| Description | Kit contains all the necessary consumables and accessories for mild steel cutting at 130 A and below |
| Kit type (MS) | HPR130XD mild steel bevel starter kit (130 A and below) |
|---|---|
| Kit part number | 428626 |
| Description | Kit contains all the necessary consumables and accessories for mild steel bevel cutting at 130 A and below |
| Kit type (AL/SS) | HPR130XD aluminum and stainless steel starter kit (130 A and below) |
|---|---|
| Kit part number | 228421 |
| Description | Kit contains all the necessary consumables and accessories for aluminum and stainless steel cutting at 130 A and below |
