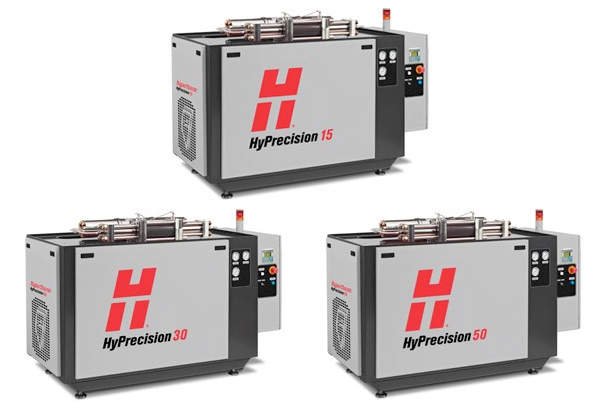

Basic series HyPrecision waterjet pumps
About
Waterjet technology produces excellent fine-feature cut quality with low edge angularity, no heat-affected zone, a narrow kerf, and virtually dross-free cutting. It also offers the ability to process a variety of materials and a thickness range capability unmatched by other cutting technologies.
Incorporating proprietary Advanced Intensifier Technology (AIT), Hypertherm HyPrecision™ Waterjet Pumps are the hardest-working, most cost-effective waterjet pumps in the world. The Basic Series 15, 30, and 50 products are engineered to deliver long-life reliability and uncompromised safety for the lowest cost of ownership.
Use the comparison chart to choose the HyPrecision system that will best suit your long-term needs
| Type | Waterjet systems |
| Product line | HyPrecision |
| Applications |
Trouble-free operation
- AIT extends maintenance intervals, reduces maintenance time and maximizes performance
- Sophisticated electronics provide smooth, reliable shifting for optimum cut quality and pump performance
- Powerful, intuitive software package gives operators all the information they need to maximize uptime
- Service-friendly design simplifies high-pressure end removal for quick seal maintenance
- Check valve utilizes a screwless, low-pressure poppet design that enables quick evaluation of key contact surfaces and allows faster routine servicing
Extreme reliability
- Built-in inlet water accumulator increases seal life by supplying constant water flow and pressure to the intensifier
- Stepped water filtration (1, .45 micron) improves water quality and extends seal life
- Innovative piston design minimizes seal wear and improves component life
Hassle-free hydraulic oil
- Protective coating inside the hydraulic tank prevents rusting
- Easy-access drain on the hydraulic tank makes oil changes quick and easy
- Kidney loop oil cooling and filtration provides higher hydraulic system efficiency
- Easy-access cover on the hydraulic tank makes for easy inspection and replacement of strainers (not available on 150D series)
Maximum energy efficiency
- Totally enclosed force cooled (TEFC) electrical motor
- Plate heat exchanger improves cooling efficiency
- Optional water modulating valve provides cooling water only when needed
| HyPrecision 15 | HyPrecision 30 | HyPrecision 50 | ||||
|---|---|---|---|---|---|---|
| 50 Hz | 60 Hz | 50 Hz | 60 Hz | 50 Hz | 60 Hz | |
| General | ||||||
| Maximum output flow | 0.30 gpm (1.14 lpm) | 0.60 gpm (2.27 lpm) | 1.0 gpm (3.79 lpm) | |||
| Maximum orifice | 0.007" (0.178 mm) | 0.011" (0.279 mm) | 0.014" (0.356 mm) | |||
| Continuous output pressure | Adjustable to 60,000 psi (4137 bar) | |||||
| Intensifier configuration | Single | |||||
| Pressure control | Dual manual | |||||
| Bleed-down valve | Air | |||||
| Pump power | ||||||
| Motor Power | 15hp (11.2 kW) | 30hp (22.4 kW) | 50hp (37.3 kW) | |||
| Voltage | 400 V | 208-230/460 V | 400 V | 208-230/460 V | 400 V | 208-230/460 V |
| Full load | 24 A | 43-39/19 A | 44 A | 83-75/38 A | 73 A | 135-122/61 A |
| Main breaker | 25 A | 50/25 A | 50 A | 100/50 A | 100 A | 175/100 A |
| Soft start | - | - | Wye-Delta | |||
| Physical | ||||||
| Overall width | 34" (864 mm) | |||||
| Overall length | 70" (1778 mm) | |||||
| Overall height | 46" (1168 mm) | |||||
| Approximate operating weight | 2900 lb (1315 kg) | |||||
| Options | ||||||
| External air-over-oil cooling | ||||||
| Chiller for oil cooling | ||||||
| Water modulating valve | ||||||
| External boost pump | ||||||
Orifice combinations supported by the HyPrecision pumps
HyPrecision 15
| Orifice size | in (mm) |
|---|---|
| 1 orifice | 0.007 (0.18) |
| 2 orifices | 0.005 (0.13) |
| 3 orifices | 0.004 (0.10) |
| 4 orifices | - |
| 5 orifices | - |
| 6 orifices | - |
HyPrecision 30
| Orifice size | in (mm) |
|---|---|
| 1 orifice | 0.011 (0.28) |
| 2 orifices | 0.007 (0.18) |
| 3 orifices | 0.006 (0.15) |
| 4 orifices | 0.005 (0.13) |
| 5 orifices | 0.004 (0.10) |
| 6 orifices | 0.004 (0.10) |
HyPrecision 50
| Orifice size | in (mm) |
|---|---|
| 1 orifice | 0.014 (0.35) |
| 2 orifices | 0.010 (0.25) |
| 3 orifices | 0.008 (0.20) |
| 4 orifices | 0.007 (0.18) |
| 5 orifices | 0.006 (0.15) |
| 6 orifices | 0.005 (0.13) |
Nozzle and Orifice Combinations
| Orifice | Nozzle | Abrasive (lb/min) | Abrasive mesh |
|---|---|---|---|
| 0.007 | 0.020 | 0.25 | 120 - 220 |
| 0.009 | 0.030 | .4 - .6 | 80 - 120 |
| 0.010 | 0.030 | .5 - .75 | 80 - 120 |
| 0.013 | 0.040 | 1.0 - 1.25 | 60 - 80 |
| 0.014 | 0.040 | 1.1 - 1.35 | 60 - 80 |
| 0.015 | 0.040 | 1.25 - 1.5 | 60 - 80 |
| 0.016 | 0.040 | 1.3 - 1.5 | 60 - 80 |
Typical combinations by pump size
| HP | Qty heads | Orifice/Nozzle |
|---|---|---|
| 30 | 1 | .010/.030 |
| 30 | 2 | .006 water |
| 50 | 1 | .014/.040 |
| 50 | 2 | .010/.030 |
Power vs. flow for HyPrecision waterjet pumps
| Model | Power | Pressure | Max. output flow | Max. orifice size | ||||
|---|---|---|---|---|---|---|---|---|
| hp | kW | psi | bar | GPM | L/min | in | mm | |
| 15 | 15 | 11.2 | 60,000 | 4137 | 0.24 | 0.90 | 0.007 | 0.18 |
| 30 | 30 | 22 | 60,000 | 4137 | 0.60 | 2.30 | 0.011 | 0.28 |
| 50 | 50 | 37 | 60,000 | 4137 | 1.00 | 3.80 | 0.014 | 0.35 |
