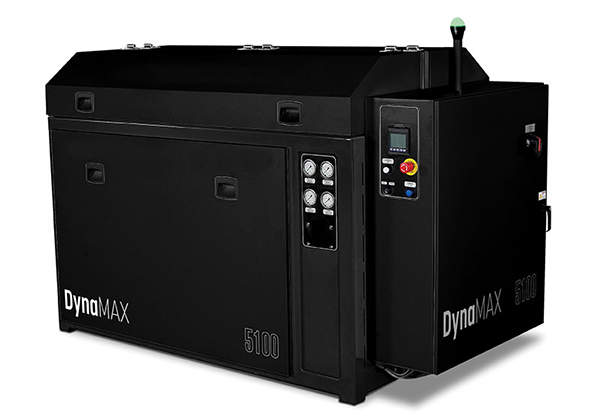

DynaMAX 5100/5150 dual intensifier waterjet pumps

Waterjet technology produces excellent fine-feature cut quality with low edge angularity, no heat-affected zone, a narrow kerf, and virtually dross-free cutting. It also offers the ability to process a variety of materials and a thickness range capability unmatched by other cutting technologies.

Incorporating proprietary Advanced Intensifier Technology™ (AIT), Hypertherm DynaMAX™ 5100/5150 waterjet pumps (HyPrecision D series) are the hardest-working, most cost-effective waterjet pumps in the world. The 5-series dual intensifier pumps are our highest capacity waterjets. They include advanced control and monitoring features, and are engineered to deliver long-life reliability and uncompromised safety for the lowest cost of ownership.



System information

Benefits

Extreme reliability

  • Built-in inlet water accumulator increases seal life by supplying constant water flow and pressure to the intensifier
  • Stepped water filtration (10, 1, .45 micron) improves water quality and extends seal life
  • Innovative piston design minimizes seal wear and improves component life

 Maximum energy efficiency

  • Totally enclosed force cooled (TEFC) electrical motor
  • Tube design
  • Standard water modulating valve provides cooling water




Specifications

  DynaMAX 5100 DynaMAX 5150
  50 Hz 60 Hz 50 Hz 60 Hz
General
Maximum output flow 2.1 gpm (7.95 lpm) 2.2 gpm (8.33 lpm) 3.0 gpm (11.36 lpm) 3.2 gpm (12.11 lpm)
Maximum orifice 0.020" (0.508 mm) 0.021" (0.533 mm) 0.024" (0.610 mm) 0.025" (0.635 mm)
Continuous output pressure Adjustable to 60,000 psi (4137 bar)
Intensifier configuration Dual
Pressure control Electronic proportional
Bleed-down valve Hydraulic
Pump power
Motor Power 100hp (74.6 kW) 150hp (111.9 kW)
Voltage 400 V 460 V 400 V 460 V
Full load 138 A 117.5 A 204 A 173.4 A
Main breaker 150 A 225 A
Soft start True soft start
Physical
Overall width 45" (1143 mm) 55" (1397 mm)
Overall length 86" (2184 mm) 81" (2057 mm)
Overall height 56" (1422 mm) 56" (1422 mm)
Approximate operating weight 4150 lb (1882 kg) 6100 lb (2767 kg)
Options
External air-over-oil cooling Optional Optional
Chiller for oil cooling Optional Optional
Water isolation valves Optional Standard

Operating data

Orifice combinations supported by the DynaMAX 5100/5150 pumps

DynaMAX 5100

Orifice size in (mm)
1 orifice 0.020 (0.51)
2 orifices 0.014 (0.36)
3 orifices 0.011 (0.28)
4 orifices 0.010 (0.25)
5 orifices 0.009 (0.23)
6 orifices 0.008 (0.20)

DynaMAX 5150

Orifice size in (mm)
1 orifice 0.024 (0.61)
2 orifices 0.017 (0.43)
3 orifices 0.014 (0.36)
4 orifices 0.012 (0.30)
5 orifices 0.011 (0.28)
6 orifices 0.010 (0.25)

Nozzle and Orifice Combinations

Orifice Nozzle Abrasive (lb/min) Abrasive mesh
0.007 0.020 0.25 120 - 220
0.009 0.030 .4 - .6 80 - 120
0.010 0.030 .5 - .75 80 - 120
0.013 0.040 1.0 - 1.25 60 - 80
0.014 0.040 1.1 - 1.35 60 - 80
0.015 0.040 1.25 - 1.5 60 - 80
0.016 0.040 1.3 - 1.5 60 - 80

Typical combinations by pump size

HP Qty heads Orifice/Nozzle
100 2 .014/.040
100 4 .010/.030
150 2 .017/.045
150 3 .014/.040
150 6 .010/.030

Power vs. flow for DynaMAX waterjet pumps

Model Power Pressure Max. output flow Max. orifice size
  hp kW psi bar GPM L/min in mm
100D 100 74 60,000 4137 2.10 7.95 0.020 0.51
150D 150 110 60,000 4137 3.00 11.40 0.024 0.61
